RENFROE-INNOVATIVE POWER
Founded in USA in the 1930's, Caldwell Inc. acquired JC Renfroe in 2013. Perfectly complementing its product range, a new giant for load handling equipment „Made in USA“ was created. The innovative strength that has been further boosted as a result in over 50 different types of clamps. Quality and variety. All from a single source.
Benefits of RENFROE clamps in the standard design:
- Lightweight design
- Ergonomic and easy operation
- Compact
- RFID chip for simplified inspection and documentation
- Supplied with corresponding documentation (operating manual and declaration of conformity)
- Suitable for sheets with a surface hardness of up to 363 HV10 (341 HB / 37Rc)

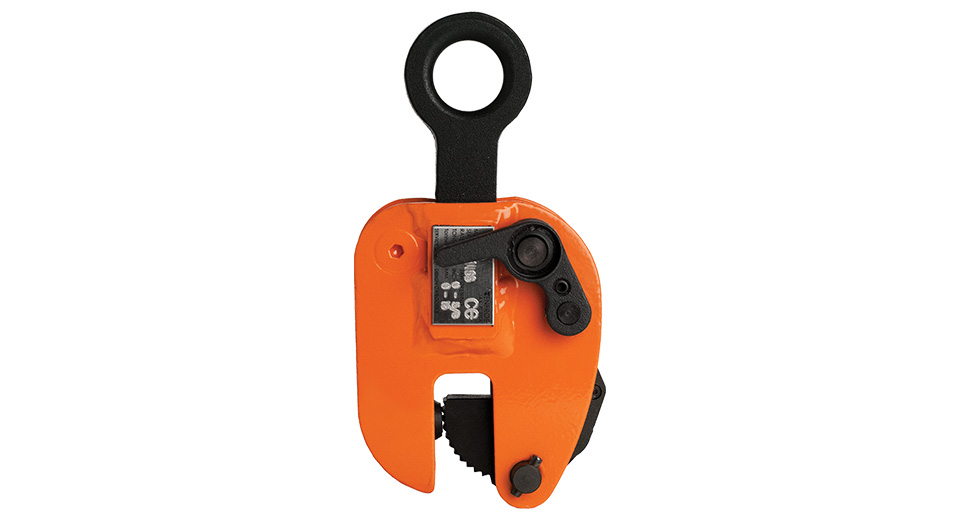

Model L.
Suitable up to 90° lateral WLL. Each clamp is tested for 2 x WLL, provided with a serial number, and is delivered with a certificate and CE-marking. Safety factor 3:1.
Suitable up to a sheet surface hardness of 363 HV 10 (341 HB / 37 RC). Made of high strength steel. Each clamp is given a RFID transponder as standard, for simplified inspection and documentation. L-vertical clamps are equipped with a lever for locking the open and closed position. Area of application temperature: -20 °C to 100 °C (ambient and load temperature). The L-clamps are compact and easy to operate. The construction design of the L-clamps allows simple repair and maintenance.

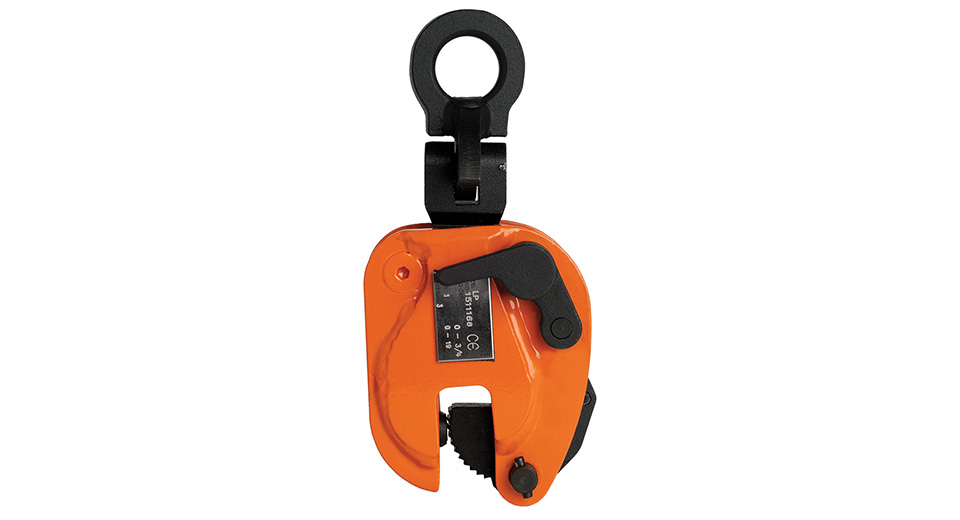

Model LP.
Suitable up to 90° lateral and transverse WLL, with universal carrying ring. Each clamp is tested for 2 x WLL, provided with a serial number, and is delivered with a certificate and CE-marking. Safety factor 3:1.
Suitable up to a sheet surface hardness of 363 HV 10 (341 HB / 37 RC). Made of high strength steel. Each clamp is given a RFID transponder as standard, for simplified inspection and documentation. LP-vertical clamps are equipped with a lever for locking the open and closed position. Area of application temperature: -20 °C to 100 °C (ambient and load temperature). The LP-clamps are compact and easy to operate. The construction design of the LP-clamps allows simple repair and maintenance.

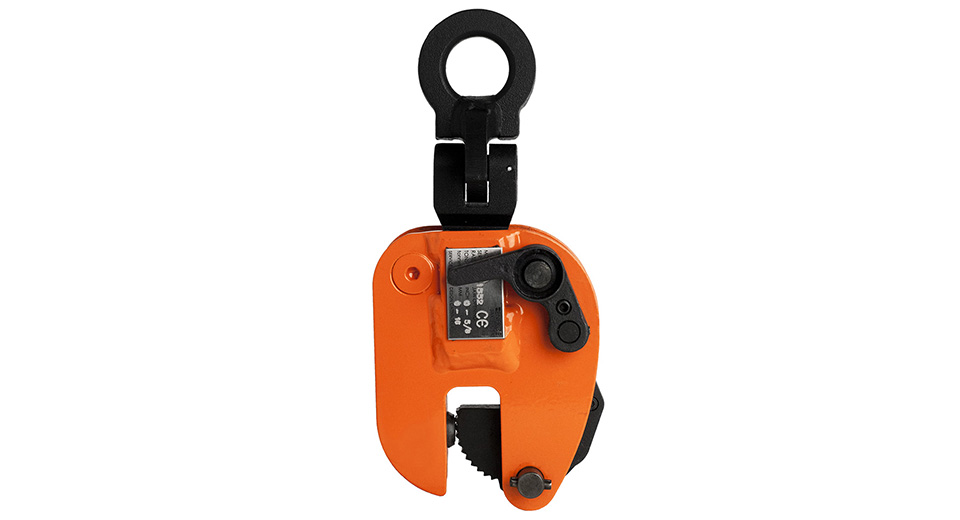

Model LPA.
Suitable up to 180° lateral and transverse WLL, with universal carrying ring. Each clamp is tested for 2 x WLL, provided with a serial number, and is delivered with a certificate and CE-marking. Safety factor 3:1.
Suitable up to a sheet surface hardness of 363 HV 10 (341 HB / 37 RC). Made of high strength steel. Each clamp is given a RFID transponder as standard for simplified inspection and documentation. LPA-vertical clamps are equipped with a lever for locking the open and closed position. This clamp also has a push-button lock as an additional safety feature, which prevents the lever from being opened accidentally, for example when turning loads. Area of application temperature: -20 °C to 100 °C (ambient or load temperature). The LPA-clamps are compact and easy to operate. The construction design of the LPA-clamps allows simple repair and maintenance.

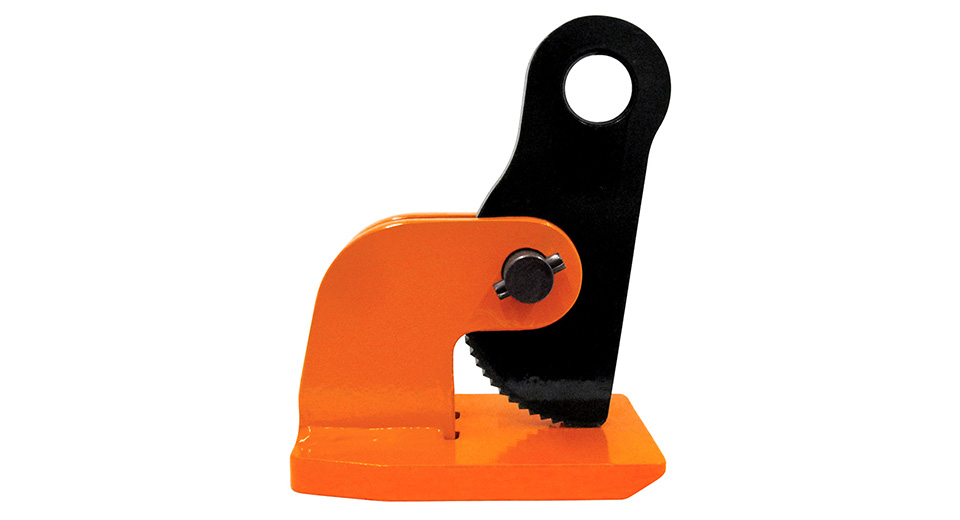

Model LHC.
Each LHC-horizontal lifting clamp is tested for 2 x WLL, provided with a serial number, and is delivered with a certificate and CE-marking. Safety factor 3:1.
Suitable up to a sheet surface hardness of 363 HV 10 (341 HB / 37 RC). Made of high strength steel. Each clamp is given a RFID transponder as standard, for simplified inspection and documentation. Area of application temperature: -20 °C to 100 °C (ambient and load temperature). The LHC-clamps are compact and easy to operate. The construction design of the LHC-clamps allows simple repair and maintenance.
Product highlights from the RUD range.
Model LP
Model LPA
Model LHC

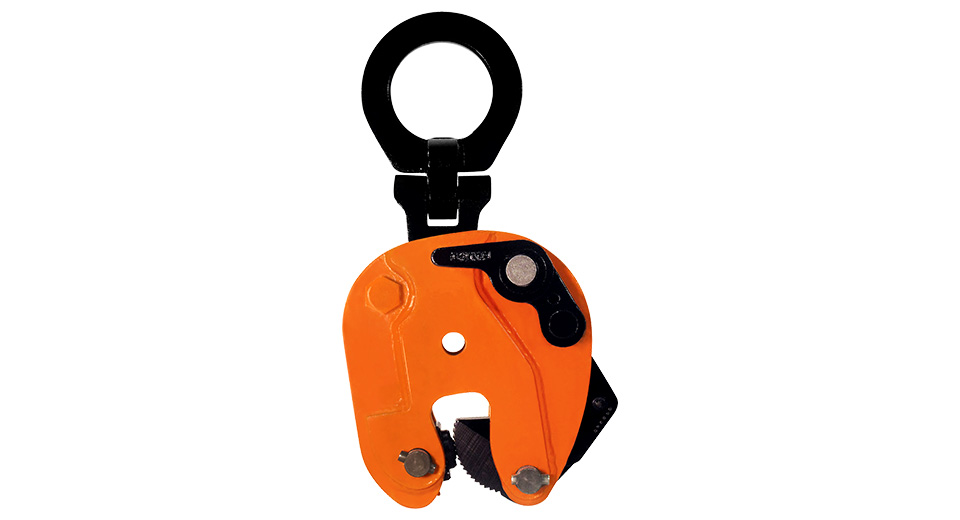

Model JPA

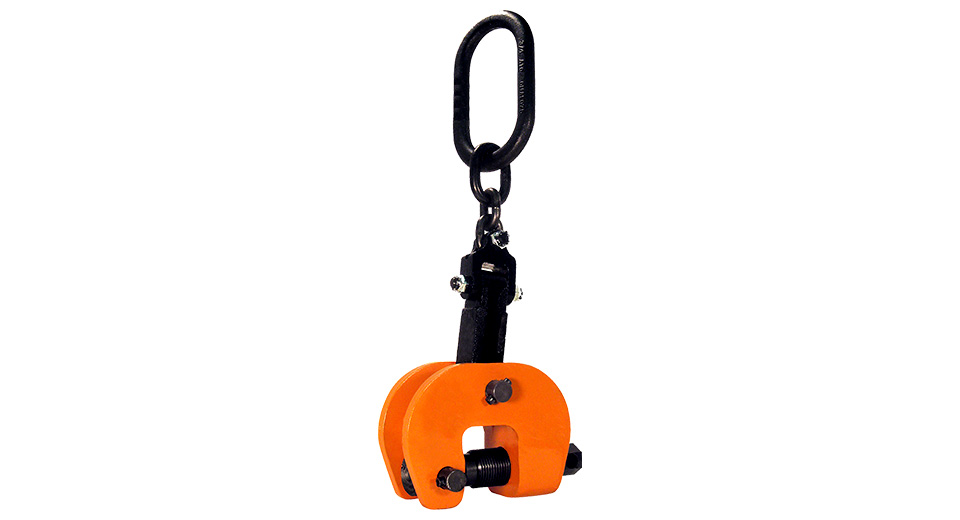

Model SCPA

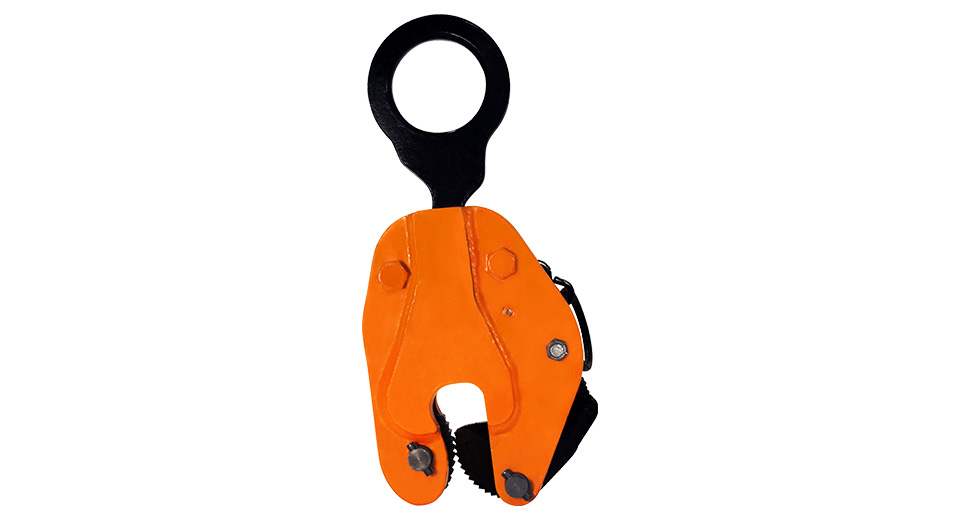

Model LJ
